Side indenting iHCS

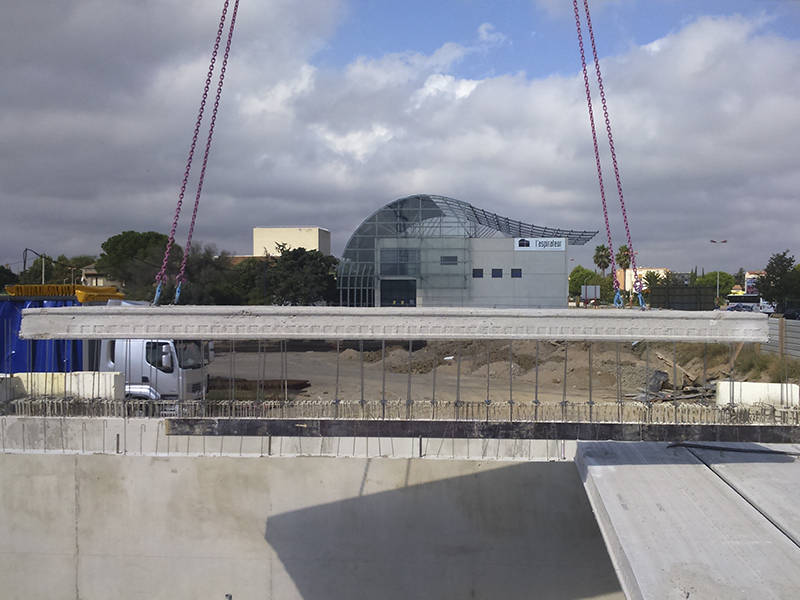

Mechanism provided to produce the holloow core slabs with side indenting so that a great additional friction is obtained at the longitudinal joint, following the EuroCode 2, EN1992 and EN1168.
The System mounts a hydraulic actuator mounted on the so-called rectifier mold.

By mean a P. L. C. Mounted inside the electrical control panel, it is possible to definí the geometry of the indenting; with a selector switch the operator may select the type of slabs to be produced, with or without side indenting.



  • Mecanismo para la producción de placas alveolares con dentado lateral según EuroCode 2, EN1992, EN-1168.
  • Sistema de accionamiento hidráulico montado en la prolongación del molde.
  • Autómata programable (PLC) que permite parametrizar la geometría.
  • Selector de dos posiciones iHCS/HCS.
  • Disminución de la capa de compresión.
